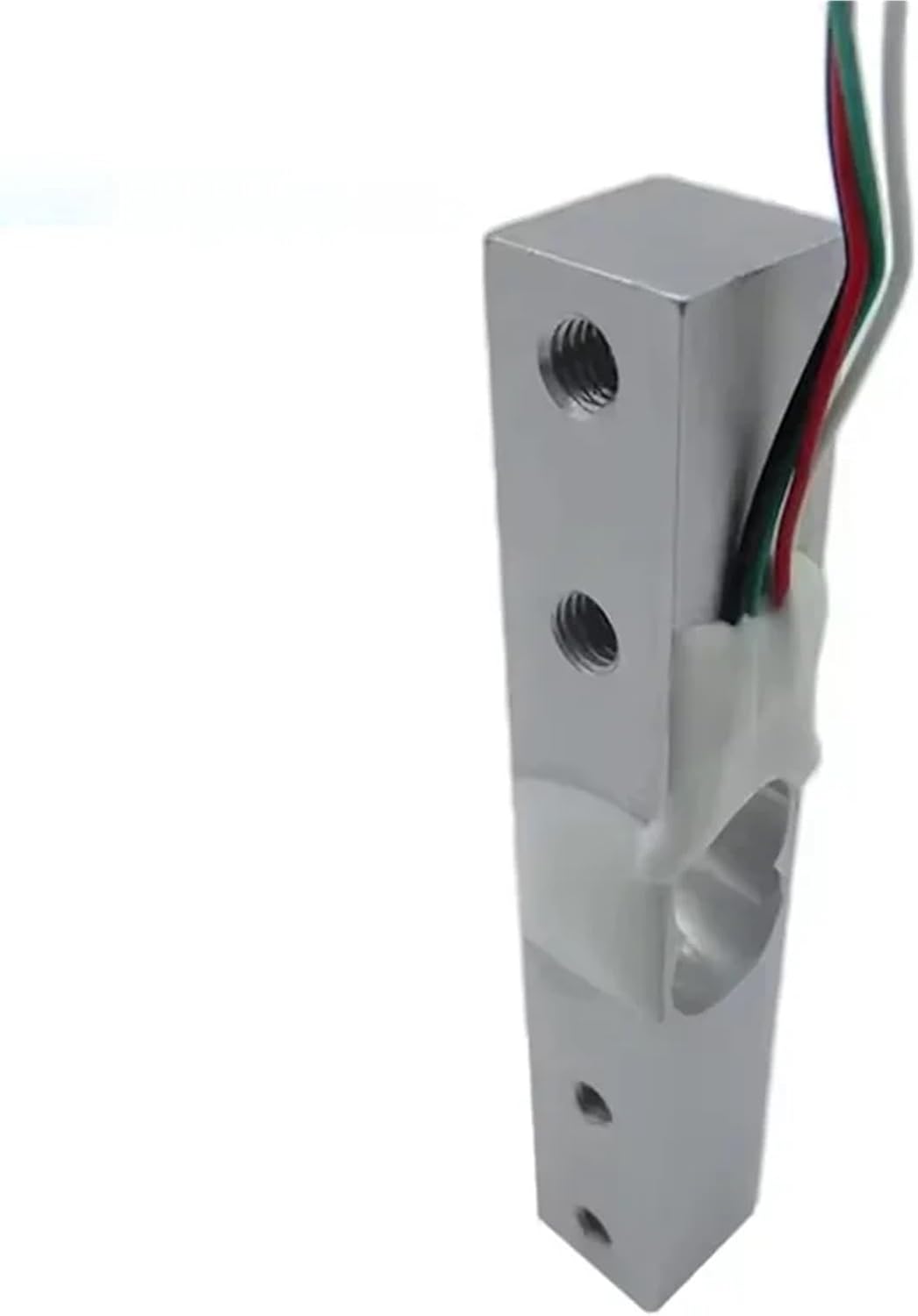

1pc CZL611N Load Cell 1/3/5/10/20kg Small Range Weighing Pressure Sensor Kitchen Scale Portable Scale Small Appliance(5KG)
Product details
| Management number | 214336037 | Release Date | 2026/04/12 | List Price | $19.82 | Model Number | 214336037 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Sensors1pc CZL611N Load Cell 1/3/5/10/20kg Small Range Weighing Pressure Sensor Kitchen Scale Portable Scale Small ApplianceCapacity : 1~50Model Number : CZL611NMaximum capacity (E)max : 1~50Temperature effect on zero balance (TK0) : ±0.5Sensitivity(Cn) : 1.0±0.15Temperature effect on sensitivity TKC : ±0.05Non-linearity(dlin) : ±0.05Hysteresis error(dhy) : ±0.05Repeatability : ±0.05Creep(3min) : ±0.05Off center load error : ±0.1Zero balance : ±0.1Input resistance (RLC) : 1000±10Ouput resistance (RO) : 1000±10Reference excitation voltage (Uref) : 5Operating voltage (Bu) : 3~10Insulation resistance (Ris) at 100 VDC : 2Service temperature range (Btu) : 0 ~+40Storrage temperature range (Btl) : -10 ~+60Safe load limit (EL) : 120Breaking load (Ed) : 150
- Sensors
- 1pc CZL611N Load Cell 1/3/5/10/20kg Small Range Weighing Pressure Sensor Kitchen Scale Portable Scale Small Appliance
| Department | unisex-adult |
|---|---|
| Item Weight | 1.76 ounces |
| Manufacturer | QFDRRFIJT |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | QFDRRFIJT |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
